Speed Display, Traffic Radar / Vehicle Radar - Speed Measurement and Statistics - Speed LUX 230V
Radar-based technology:
This device measures the speed of approaching vehicles and clearly displays this information on a screen.
Operation:
After setting the maximum allowed speed for a specific location, the following messages are displayed:

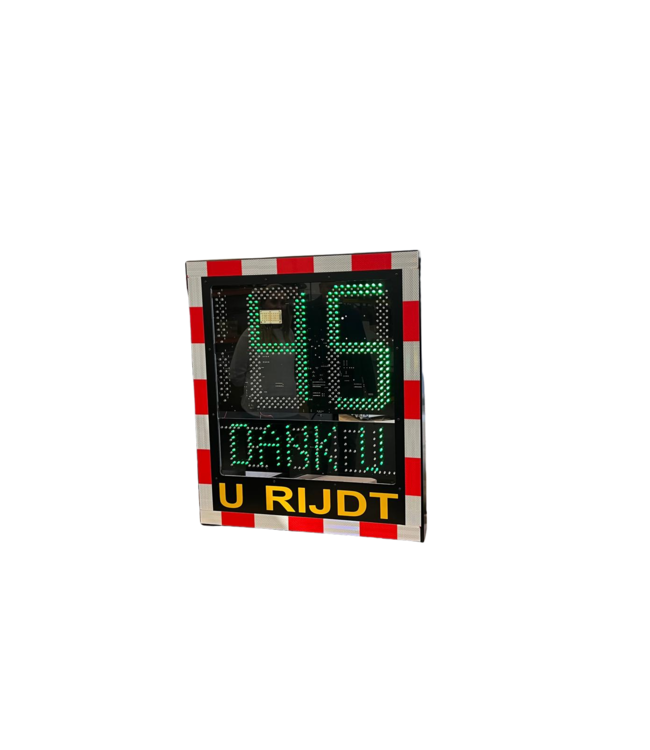

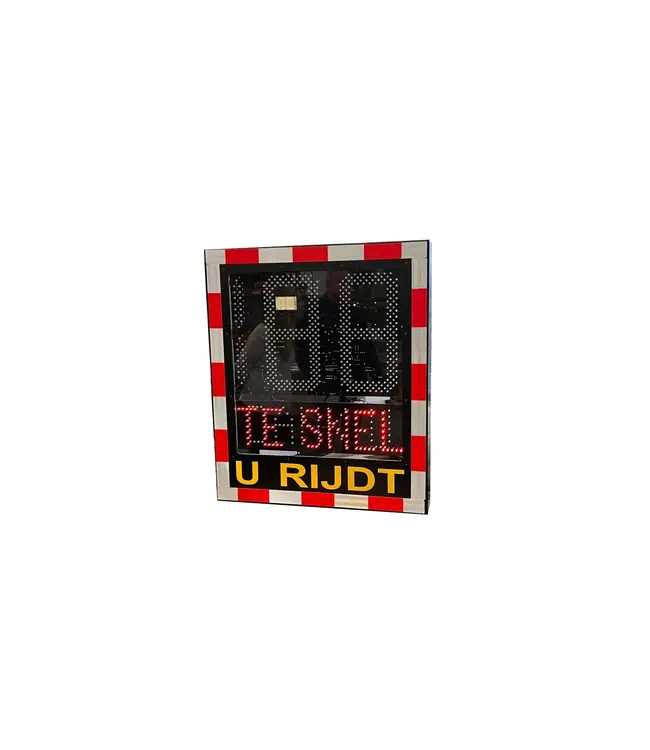

- In red: the speed in km/h with the message "SLOW DOWN" when the speed limit is exceeded.
- In green: the speed in km/h with the message "THANK YOU" when the driver stays within the speed limit.
Applications:
- Near schools
- Main roads
- Intersections
- Residential areas
- Other locations requiring traffic calming and speed reduction
Specifications:
- Power supply: 240V AC
- Dimensions: 64 x 75 x 10 cm
- Frequency: 24.125 GHz, +/- 50 MHz (accuracy: +/- 1.5 km/h)
- Sensor range: 80-100 m (long-range sensor: 150-170 m)
- Weight: 26 kg
- Digit height: 10 cm
- Speed range: 0-199 km/h
- Width of red/white frame: 40 mm
- LED display: 2.5 digits, 12.5″ LEDs in red/green (super bright, lifespan up to 100,000 hours)
- Fuses: Multi-circuit, 4 amps
- Additional power options: 12V DC battery (20 Ah) with solar panel
- Power consumption: < 0.2 A in active mode, < 1 W in standby mode
- Radar type: K-band, directional Doppler radar, FCC-compliant (Part 15)
- Beam width: 30/40 degrees, +/- 2 degrees (long-range sensor: 12/10 degrees)
Optional extensions:
- Wi-Fi module: for data reading, such as recorded speeds.
In case of a power outage:
The device operates on an internal battery supported by solar panels. The battery voltage is automatically monitored, and the device shuts down if the voltage drops below 11.5 V. It restarts when the voltage exceeds 12.5 V.
Benefits of speed radars:
Speed displays improve road safety by raising driver awareness of their speed without penalizing them. Unlike traditional radars, these devices are not equipped with cameras to issue fines but function preventively. Statistics show that drivers often reduce their speed when they see a speed display.
Radar speed displays – screen colors:
White digits are not allowed. Typically, red digits are used for speeding violations, and green digits are used for compliant speeds.
Why choose a speed radar?
These devices significantly enhance road safety by reducing speed in critical areas such as:
- Entrances to villages or towns along busy roads
- Near schools and pedestrian crossings
Speed radars with displays are effective:
They increase road safety, work preventively, and help drivers become more aware of their speed without penalizing them. These radars are friendly to both pedestrians and drivers and promote effective traffic safety.
